| 00英 标 线 槽 |
|
 藏地槽 |
藏地槽是全封密式设计，全槽潜藏在地下互相接驳联系。
槽身可选用镀锌钢板或热浸锌钢板，每槽以配备驳码和接地铜片。另有二仓式及三仓式设计以分隔不同电线之用，每条标准长度则为2.44m。 |
Underfloor Trunlings are completely sealed trunking with 2.44m Standard length . They can be connected together to form a distrbution network under the floor .
The boy is made of high quality galvanized steel or finished with hot dippec galvanized.Connectors and copper links are also supplied with the truking as accessories.
This product can be manutactured into 2 or 3 compartments to suit difffent requirement. |
|
 |

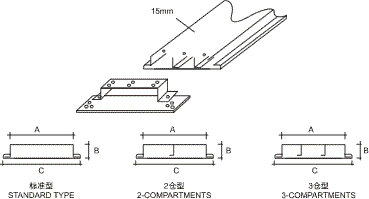

藏地槽尺寸
Cable Trunking Size(mm) |
外尺寸 dimension(mm) |
型号 Model |
| A |
B |
C |
标准型
Standard Type |
2仓型
2-C Type |
3仓型
3-C Type |
| 225*20 |
225 |
20 |
257 |
UF 2520 |
UFD 2520 |
UFT 2520 |
| 225*25 |
225 |
25 |
257 |
UF 2525 |
UFD 2525 |
UFT 2525 |
| 225*32 |
225 |
32 |
257 |
UF 2532 |
UFD 2532 |
UFT 2532 |
| 300*20 |
300 |
20 |
332 |
UF 3020 |
UFD 3020 |
UFT 3020 |
| 300*25 |
300 |
25 |
332 |
UF 3025 |
UFD 3025 |
UFT 3025 |
| 300*32 |
300 |
32 |
332 |
UF3 032 |
UFD 3032 |
UFT 3032 |
|
|
|
|
