| 00英 标 线 槽 |
|
 电缆托盘配件90°圆弯曲 |
| |
符合英国安全标准BS4678 |
To BS 4678 Part 1 Class 2 & 3 |
|
 |
适用线槽尺寸
Cable Trunking Size(mm) |
外形尺寸 dimension(mm) |
型号(边单折式热浸锌) Model (Single Flange Type HOT—DIP Galvenised ) |
| A |
R1 |
R2 |

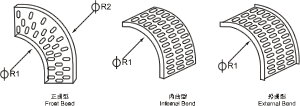

正曲型
Flat bend |
内曲型
Interal bend |
外曲型
External bend |
| 50 |
50 |
75 |
125 |
OTHS/F 50 |
OTHS/I 50 |
OTHS/E 50 |
| 75 |
75 |
75 |
150 |
OTHS/F 75 |
OTHS/I 75 |
OTHS/E 75 |
| 100 |
100 |
100 |
200 |
OTHS/F 100 |
OTHS/I 100 |
OTHS/E 100 |
| 150 |
150 |
100 |
250 |
OTHS/F 150 |
OTHS/I 150 |
OTHS/E 150 |
| 200 |
200 |
125 |
325 |
OTHS/F 200 |
OTHS/I 200 |
OTHS/E 200 |
| 250 |
250 |
150 |
400 |
OTHS/F 250 |
OTHS/I 250 |
OTHS/E 250 |
| 300 |
300 |
200 |
500 |
OTHS/F 300 |
OTHS/I 300 |
OTHS/E 300 |
| 450 |
450 |
250 |
700 |
OTHS/F 450 |
OTHS/I 450 |
OTHS/E 450 |
| 600 |
600 |
300 |
900 |
OTHS/F 600 |
OTHS/I 600 |
OTHS/E 600 |
|
|
|
|
