| 00英 标 线 槽 |
|
 电缆托盘配件 刁式 |
| |
符合英国安全标准BS4678 |
To BS 4678 Part 1 Class 2 & 3 |
|
 |
适用线槽尺寸
Cable Trunking Size(mm) |
外形尺寸 dimension(mm) |
型号(边单折式热浸锌) Model ( Single Flange Type HOT—DIP Galvenised ) |
| A |
B |
C |

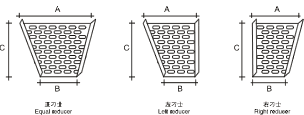

正刁式
Equal Reducer |
左刁式
Left Reducer |
右刁式
Right Reducer |
| 75-50 |
75 |
50 |
75 |
RTHS/F 7550 |
RTHS/L 7550 |
RTHS/R 7550 |
| 100-75 |
100 |
75 |
100 |
RTHS/F 1075 |
RTHS/L 1075 |
RTHS/R 1075 |
| 150-100 |
150 |
100 |
150 |
RTHS/F 1510 |
RTHS/L 1510 |
RTHS/R 1510 |
| 150-75 |
150 |
75 |
150 |
RTHS/F 1575 |
RTHS/L 1575 |
RTHS/R 1575 |
| 200-150 |
200 |
150 |
200 |
RTHS/F 2015 |
RTHS/L 2015 |
RTHS/R 2015 |
| 200-100 |
200 |
100 |
200 |
RTHS/F 2010 |
RTHS/L 2010 |
RTHS/R 2010 |
| 250-200 |
250 |
200 |
300 |
RTHS/F 2520 |
RTHS/L 2520 |
RTHS/R 2520 |
| 300-150 |
300 |
150 |
300 |
RTHS/F 3015 |
RTHS/L 3015 |
RTHS/R 3015 |
| 450-300 |
450 |
300 |
400 |
RTHS/F 4530 |
RTHS/L 4530 |
RTHS/R 4530 |
| 600-450 |
600 |
400 |
500 |
RTHS/F 6045 |
RTHS/L 6045 |
RTHS/R 6045 |
|
|
|
|
