| 00英 标 线 槽 |
 电缆托架配件90度曲 |
|
符合英国安全标准BS4678 |
To BS 4678 Part 1 Class 2 & 3 |
|
| 单边折式(镀锌钢板) |
边勾折式(镀锌钢板) |
| Single Flange Type (Galvenised Steel) |
Return Flange Type (Galvenised Steel) |
| 型号以S/为代表 |
型号以D/为代表 |
| Model Before Slash S/ |
Model Before Slash D/ |
| 单边折式(热浸锌处理) |
边勾折式(热浸锌处理) |
| Single Flange Type( HOT—DIP Galvenised Finish) |
Return Flange Type( HOT—DIP Galvenised Finish) |
| 型号以HS/ 为代表 |
型号以HD/ 为代表 |
| Model Before Slash HS/ |
Model Before Slash HD/ |
|
 |
|
|
适用线槽尺寸
Cable Trunking Size(mm) |
外形尺寸 dimension(mm) |
型号(边单折式热浸锌) Model ( Single Flange Type HOT—DIP Galvenised ) |
| A |
B |
C |

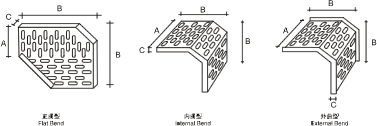

正曲型
Flat bend |
内曲型
Interal bend |
外曲型
External bend |
| 50 |
50 |
100 |
13 |
DTHS/F 50 |
DTHS/I 50 |
DTHS/E 50 |
| 75 |
75 |
125 |
13 |
DTHS/F 75 |
DTHS/I 75 |
DTHS/E 75 |
| 100 |
100 |
175 |
13 |
DTHS/F 100 |
DTHS/I 100 |
DTHS/E 100 |
| 150 |
150 |
225 |
13 |
DTHS/F 150 |
DTHS/I 150 |
DTHS/E 150 |
| 200 |
200 |
300 |
13 |
DTHS/F 200 |
DTHS/I 200 |
DTHS/E 200 |
| 250 |
250 |
350 |
13 |
DTHS/F 250 |
DTHS/I 250 |
DTHS/E 250 |
| 300 |
300 |
400 |
13 |
DTHS/F 300 |
DTHS/I 300 |
DTHS/E 300 |
| 450 |
450 |
575 |
13 |
DTHS/F 450 |
DTHS/T 450 |
DTHS/E 450 |
| 600 |
600 |
750 |
20 |
DTHS/F 600 |
DTHS/T 600 |
DTHS/E 600 |
|
|
|
