| 0000支 架 |
|
 槽钢立柱地座XQJ-H-02C |
|
|
|
序 号
NO. |
型 号 Model |
规格 L
Specification |
备注
Remarks |
| 1 |
H-02C |
60 |
配H-01C(I)H-O1E(I)工字钢
Used with H-girder H-01 |

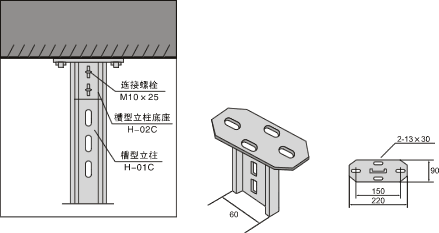

H-02C槽钢立柱底座、可与H-O1C槽型立柱、H-O1E异性立柱配套，可做吊装电缆或垂直引上、引下用。与H-01E配套使用时，底座尺寸有更改。
E-channel column base Modle H-02 is used with E-channel column Modle H-01 or spe- cial-shaped steel column Modle H-01E in a up or down leading way .When E-channel column Modle H-01C ,the mea surement of base is modified. |
|
|
| |
|
