| 0000支 架 |
|
 工字钢立柱地座XQJ-H-02A |
|
|
|
序 号
NO. |
型 号 Model |
规格 L
Specification |
备注
Remarks |
| 1 |
H-02A-8* |
80 |
配8*工字钢
Used with H-girder 8* |
| 2 |
H0-02A-10* |
100 |
配10*工字钢
Used with H-girder 10* |

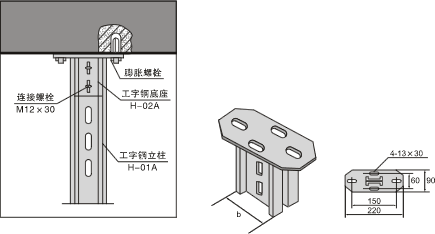

H-02A工字钢立柱地座，用于悬挂式直立工字钢立柱的支承连接装时先用M12膨胀螺栓固定好地座（如与钢结构连接可采用焊接，焊好后涂漆），然后用M12X30L连接螺栓固定工字钢。
H-girder column base Model H-02A is used to coonect the suspension and vertical H-girder column. When installed, it is first to the base with expansion bolts or anchor bolts (If it is fixed to steel structure, it is linked by wlding before painted),then connected to the column with bolts M12 X 30. |
|
|
| |
|
