| 0000支 架 |
|

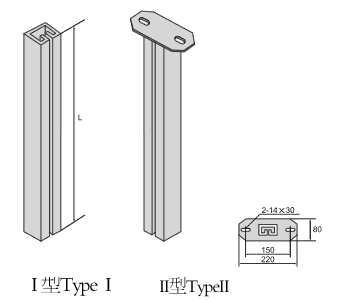

 异型立柱 XQJ-H-01E |
|
|
|
序 号
NO. |
型 号 Model |
规格 L
Specification |
重量：kg/节
Weight:kg |
备注
Remarks |
| 1 |
H-01E-3 |
300 |
1.92 |
Ⅱ型每件加1.61kg
Additional 1.61 kg
per piece for typeⅡ |
| 2 |
H-01E-5 |
500 |
3.21 |
| 3 |
H-01E-8 |
800 |
5.12 |
| 4 |
H-01E-10 |
1000 |
6.41 |
| 5 |
H-01E-15 |
1500 |
9.65 |
| 6 |
H-01E-20 |
2000 |
12.86 |
H-01E角钢立柱可作轻载荷单边吊装立柱安装，配套托臂为TB-02。底座连接螺栓M12
Special-shaped steel column Model-H-01E is used with corbel TB-02 and conneetion bolt M12 as the column of omesided suspension cable tray. |
|
|
| |
|
