| 0000支 架 |
|

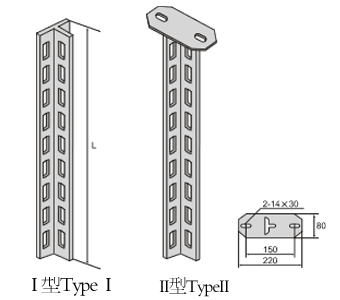

 丁字型立柱 XQJ-H-01B |
|
|
|
序 号
NO. |
型 号 Model |
规格 L
Specification |
重量：kg/节
Weight:kg |
备注
Remarks |
| 1 |
H-01B-3 |
300 |
2.94 |
Ⅱ型每件加1.61加kg
Additional 1.61 kg
per piece for typeⅡ |
| 2 |
H-01B-5 |
500 |
4.92 |
| 3 |
H-01B-8 |
800 |
7.86 |
| 4 |
H-01B-10 |
1000 |
9.82 |
| 5 |
H-01B-15 |
1500 |
14.74 |
| 6 |
H-01B-20 |
2000 |
19.64 |
H-01B丁字钢立柱可在载荷轻时作单边安装，配套托臂为TB-03安装方法六角螺柱连接每只托臂加长5mm.
T-iron column Model H-01B is used as one-sided as one-sided suspension column under light load with corble Model-TB-03 .The installation method is thesame as that for H-girder column. |
|
|
| |
|
