| 0000支 架 |
|

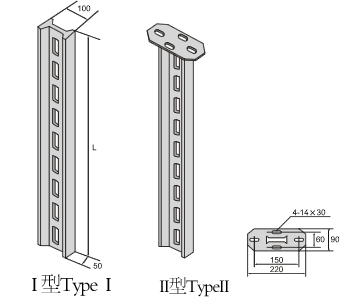

 工字型钢立柱 XQJ-H-01A |
|
|
|
序 号
NO. |
型 号 Model |
规格 L
Specification |
重量：kg/节
Weight:kg |
备注
Remarks |
| 1 |
H-01A-3 |
300 |
3.7 |
Ⅱ型每件加1.57kg
Additional 1.57 kg
per piece for typeⅡ |
| 2 |
H-01A-5 |
500 |
6.16 |
| 3 |
H-01A-8 |
800 |
9.86 |
| 4 |
H-01A-10 |
1000 |
12.3 |
| 5 |
H-01A-15 |
1500 |
18.5 |
| 6 |
H-01A-20 |
2000 |
24.6 |
| 7 |
H-01A-25 |
2500 |
30.8 |
Ⅱ型每件加4.8kg
Additional 4.8 kg
per piece for typeⅡ |
| 8 |
H-01A-30 |
3000 |
37 |
H-01A 工字钢立柱是支撑电缆桥架的主要部件，它适用于电缆多、载荷重、桥架跨度大的场合，它可以根据需要安装成悬吊式、直立式、侧臂式、悬吊式、直立式均采用多边多层安装。根据设计需要，其长度按需要选择。
H-Girder column model H-01A is main part supporting cable tray.It is fit for the cases of many cables,heave load and ollng span .It can be installed in a suspension,vertical and wall-leaning way.And when it is installed in a vertical and wal-leaning way,mono- layer or multi-layer can be applied,length depends on verquirement. |
|
|
| |
|
