| 0000组合式电缆桥架 |
|
 XQJ-ZH型组合式电缆桥架组合形式及配套件数表 |

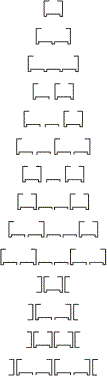

底板与侧边的配置图
Combination figuer of botton board and side |
底板宽度
（R）
width |
形式
Format |
底板数量
No. of bottom |
侧边数量 |
选择螺栓 |
单位
kg/m |
| 100 |
150 |
200 |
规格 |
数量/m |
 |
103 |
A |
1 |
|
|
2 |
M6 X 12 |
6(14) |
|
| 153 |
A |
|
1 |
|
2 |
| 203 |
A |
|
|
1 |
2 |
| 303 |
A |
|
2 |
|
2 |
9(19) |
|
| 403 |
A |
|
|
2 |
2 |
| 503 |
A |
|
2 |
1 |
2 |
9(24) |
|
| 603 |
A |
|
|
3 |
2 |
| 205 |
B |
2 |
|
|
3 |
M6 X 12 |
9(21) |
|
| 305 |
B |
|
2 |
|
3 |
| 405 |
B |
|
|
2 |
3 |
| 505 |
B |
|
2 |
1 |
3 |
12(26) |
|
| 605 |
B |
|
|
3 |
3 |
| 805 |
B |
|
|
4 |
3 |
15(31) |
|
| 306 |
C |
3 |
|
|
4 |
M6 X 12 |
12(28) |
|
| 456 |
C |
|
3 |
|
4 |
| 606 |
C |
|
|
3 |
4 |
| 806 |
C |
|
|
4 |
4 |
15(33) |
|
| 1006 |
C |
|
|
5 |
4 |
18(38) |
|
| 1206 |
C |
|
|
6 |
5 |
M6 X 15 |
21(43) |
|
| 153 |
D |
1 |
|
|
4 |
M6 X 15 |
16(24) |
|
| 203 |
D |
|
1 |
|
4 |
| 253 |
D |
|
|
1 |
4 |
| 353 |
D |
|
2 |
|
4 |
20(30) |
|
| 453 |
D |
|
|
2 |
4 |
| 256 |
E |
2 |
|
|
5 |
M6 X 15 |
24(36) |
|
| 356 |
E |
|
2 |
|
5 |
| 456 |
E |
|
|
2 |
5 |
| 656 |
E |
|
4 |
|
5 |
32(48) |
|
| 856 |
E |
|
|
4 |
5 |
|
|
注：括号内的数量包括成型和连接片所需螺栓数
Note:The figures in brack are the quantity of bolts for both installation connection |
|
|
| |
|
