| 000托盘式电缆桥架: |
|

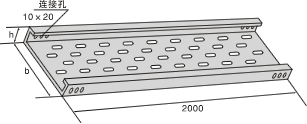

 托盘式直通桥架XQJ-P-01 |
|
|
|
序 号
NO. |
型 号
Model |
宽 度
(B)
Width |
高 度
（H)
Height |
重量：kg/节
Weight:kg |
备注
Remarks |
| 1 |
P-01-6-2 |
200 |
60 |
15.65 |
高度h为60、100时，
每端各6只连接孔
6 holes ineither end of such cable tray with a height 60mm and 100mm |
| 2 |
P-01-10-2 |
100 |
22.85 |
| 3 |
P-01-15-2 |
150 |
29.82 |
| 4 |
P-01-6-3 |
300 |
60 |
26.40 |
| 5 |
P-01-10-3 |
100 |
29.19 |
| 6 |
P-01-10-3 |
150 |
35.14 |
| 7 |
P-01-6-4 |
400 |
60 |
39.64 |
| 8 |
P-01-10-4 |
100 |
46.35 |
| 9 |
P-01-15-4 |
150 |
51.52 |
| 10 |
P-01-6-5 |
500 |
60 |
46.35 |
高度h为150时，
每端各12只连接孔
12 holes ineither end of such cable tray with a height 60mm and 150mm |
| 11 |
P-01-10-5 |
100 |
51.52 |
| 12 |
P-01-15-5 |
150 |
58.12 |
| 13 |
P-01-6-6 |
600 |
60 |
57.12 |
| 14 |
P-01-10-6 |
100 |
58.14 |
| 15 |
P-01-15-6 |
150 |
64.70 |
| 16 |
P-01-6-8 |
800 |
60 |
65.96 |
| 17 |
P-01-10-8 |
100 |
71.33 |
| 18 |
P-01-15-8 |
150 |
81.90 |
注：P-01托盘桥架备有护罩，需配护罩请在订货时按型号注明，重量另计。
Note:Cover for cable tray Modle P-01 in available. In making an order ,just indicate the tape of cover whose weight is exclusive. |
|
|
| |
|
