| 000梯级式电缆桥架 |
|

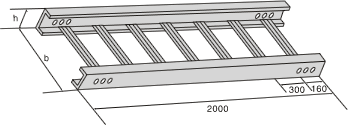

 梯级式直通桥架XQJ-T1-01 |
|
|
|
序 号
NO. |
型 号
Model |
宽 度
(B)
Width |
高 度
（H)
Height |
重量：kg/节
Weight:kg |
备注
Remarks |
| 1 |
T1-01-6-2 |
200 |
60 |
11.40 |
高度h为60、100时，
每端6只连接孔
6 holes ineither end of such cable tray with a height 60mm and 100mm |
| 2 |
T1-01-10-2 |
100 |
17.41 |
| 3 |
T1-01-15-2 |
150 |
25.91 |
| 4 |
T1-01-6-3 |
300 |
60 |
12.55 |
| 5 |
T1-01-10-3 |
100 |
18.57 |
| 6 |
T1-01-10-3 |
150 |
27.07 |
| 7 |
T1-01-6-4 |
400 |
60 |
18.70 |
| 8 |
T1-01-10-4 |
100 |
22.72 |
| 9 |
T1-01-15-4 |
150 |
28.22 |
| 10 |
T1-01-6-5 |
500 |
60 |
20.88 |
高度h为150时，
每端12只连接孔
12 holes ineither end of such cable tray with a height 60mm and 150mm |
| 11 |
T1-01-10-5 |
100 |
23.88 |
| 12 |
T1-01-15-5 |
150 |
29.38 |
| 13 |
T1-01-6-6 |
600 |
60 |
22.03 |
| 14 |
T1-01-10-6 |
100 |
25.03 |
| 15 |
T1-01-15-6 |
150 |
30.35 |
| 16 |
T1-01-6-8 |
800 |
60 |
25.34 |
| 17 |
T1-01-10-8 |
100 |
27.34 |
| 18 |
T1-01-15-8 |
150 |
32.84 |
注：T1-01弯通桥架备有护罩，需订护罩请在订货时按型号注明，重量另计。
Note:Cover for cable tray Modle T1-01 is available. In making an order ,just indicate the tape of cover whose weight is exclusive. |
|
|
| |
|
