| 000支 架 |
|
 托臂 XQJ-TB-04 |
|
|
|
序 号
NO. |
型 号 Model |
规格 L
Specification |
重量：kg/件
Weight:kg |
备住
Remarks |
| 1 |
TB-04-150 |
170 |
0.88 |
连接螺栓
IS-06/12 M12 X 110
Linked to bolts
IS-06/12 M12 X 110 |
| 2 |
TB-04-220 |
220 |
1.02 |
| 2 |
TB-04-300 |
320 |
1.30 |
| 4 |
TB-04-400 |
420 |
1.58 |
| 5 |
TB-04-500 |
520 |
1.84 |
| 6 |
TB-04-600 |
620 |
2.87 |
| 7 |
TB-04-800 |
820 |
3.61 |

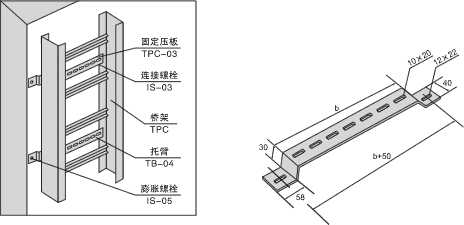

TB-04型托臂适用于各种形式桥架在垂直引上、引下或过梁时固定用。
Corble Model TB-04 is fit for verticall leading all type of cable trays up and doen or for fixing cable tray at a proper point of beams. |
|
|
| |
|
