| 000支 架 |
|
 托臂 XQJ-TB-02 |
|
|
|
序 号
NO. |
型 号 Model |
规格 L
Specification |
重量：kg/件
Weight:kg |
备住
Remarks |
| 1 |
TB-02-150 |
170 |
1.28 |
连接螺栓
IS-05 M10 X 35
Linked to bolts
IS-05 M10 X 35 |
| 2 |
TB-02-200 |
220 |
1.58 |
| 3 |
TB-02-300 |
320 |
2.16 |
| 4 |
TB-02-400 |
420 |
2.75 |
| 5 |
TB-02-500 |
520 |
3.34 |
| 6 |
TB-02-600 |
620 |
3.92 |
| 7 |
TB-02-800 |
820 |
5.11 |

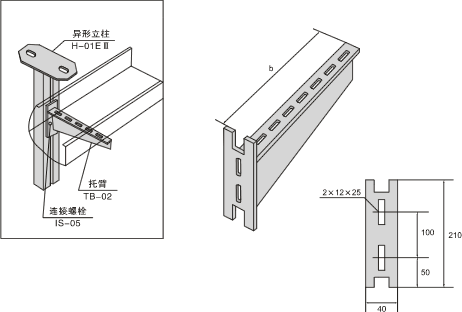

TB-02型托臂主要同H-1E 异型立柱配套安装，IS-5连接螺栓配套供应。另计价。
Corble Model TB-02 is maily used with special-shaped steel column Model-H01E supplied with connection bolts IS-05.(prices of bolts to be refered) |
|
|
| |
|
