| 000护罩与连接件 |
|
 调角片 XQJ-TPC-04 |
|
|
|
序 号
NO. |
型 号 Model |
配套高度
H
Height |
H1 |
规格L
|
备注
Remarks |
| 1 |
TPC-04-60 |
60 |
50 |
260 |
与梯级式、托盘式、槽式小开档连接孔配套
Used with lader type,tray type and channel type cable tray. |
| 2 |
TPC-04-100 |
100 |
300 |
300 |
| 3 |
TPC-04-150 |
150 |
140 |
350 |
| 4 |
TPC-04-DJ60 |
60 |
50 |
420 |
与大跨距桥架、槽式大开档桥架配套
Used with long span, and channel type cable tray. |
| 5 |
TPC-04-DJ100 |
100 |
90 |
460 |
| 6 |
TPC-04-DJ150 |
150 |
140 |
510 |
| 7 |
TPC-04-DJ200 |
200 |
150 |
560 |

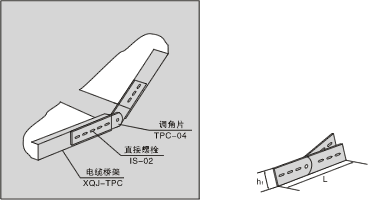

TPC-04调角片与梯级式、托盘式、槽式桥架配套作垂直方向调小角度时使用。
Angle modulator Model TCP-04 is for vertically bending cable tray of chnnel types. |
|
|
| |
|
