| 000护罩与连接件 |
|
 弯接片 XQJ-TPC-03 |
|
|
|
序 号
NO. |
型 号 Model |
配套高度
H
Height |
H1 |
规格L
|
备注
Remarks |
| 1 |
TPC-03-50 |
50/60 |
35 |
205 |
TPC -03弯接片有内外两件
Such a band is composed of aninner piece ang outer piece |
| 2 |
TPC-03-75 |
75 |
50 |
205 |
| 3 |
TPC-03-100 |
100 |
75 |
205 |
| 4 |
TPC-03-150 |
125 |
100 |
205 |
| 5 |
TPC-03-150 |
150 |
125 |
600 |
| 6 |
TPC-03-200 |
200 |
175 |
600 |

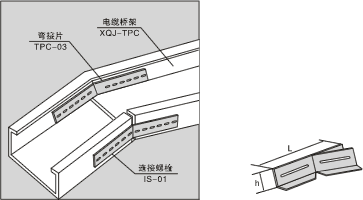

TPC-03 弯接片与梯级式、托盘式、槽式桥架配套作水平方向调小角度时使用。
Bend Model TCP-03 is for horizontally bending cable tray of chnnel types. |
|
|
| |
|
