| 000护罩与连接件 |
|
 直接片 XQJ-TPC-02C\D |
|
|
|
序 号
NO. |
型 号 Model |
配套高度
H
Height |
H1 |
规格L
|
备注
Remarks |
| 1 |
TPC-02C-60 |
60 |
30 |
170 |
高度h为100mm以下时，
每端6只连接孔
6 holes in connectors When cable tray is below 125mm high |
| 2 |
TPC-02D-60 |
170 |
| 3 |
TPC-02C-100 |
100 |
35 |
240 |
| 4 |
TPC-02D-100 |
240 |
| 5 |
TPC-02C-150 |
150 |
80 |
240 |
桥架高度h为150mm以上，
直接片12只连接孔
12 holesin connectors When cable tray is below 150mm high |
| 6 |
TPC-02D-150 |
240 |
| 7 |
TPC-02C-200 |
200 |
130 |
240 |
| 8 |
TPC-02D-200 |
240 |

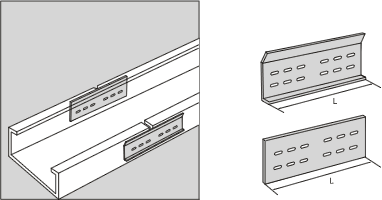

TPC-02 C/D直接片与DJ大跨距桥架配套和电缆桥架的连接
Connector Model TCP-02C/D is for connecting trays of ladder type，tray type and channel type. |
|
|
| |
|
