| 000护罩与连接件 |
|
 直接片 XQJ-TPC-02A\B |
|
|
|
序 号
NO. |
型 号 Model |
配套高度
H
Height |
H1 |
H2 |
规格L
|
备注
Remarks |
| 1 |
TPC-02A-50 |
50/60 |
35 |
|
170 |
高度h为125mm以下时，
每端各6只连接孔
6 holes in connectors When cable tray is below 125mm high |
| 2 |
TPC-02B-50 |
|
32 |
170 |
| 3 |
TPC-02A-75 |
75 |
50 |
|
170 |
| 4 |
TPC-02B-75 |
|
47 |
170 |
| 5 |
TPC-02A-100 |
100 |
75 |
|
240 |
| 6 |
TPC-02B-100 |
|
71 |
240 |
| 7 |
TPC-02A-150 |
125 |
100 |
|
240 |
高度h为15mm以上，
直接片为12只连接孔
12 holesin connectors When cable tray is below 150mm high |
| 8 |
TPC-02B-125 |
|
96 |
240 |
| 9 |
TPC-02A-150 |
150 |
135 |
|
240 |
| 10 |
TPC-02B-150 |
|
120 |
240 |
| 11 |
TPC-02A-200 |
200 |
175 |
|
240 |
| 12 |
TPC-02B-200 |
|
170 |
240 |

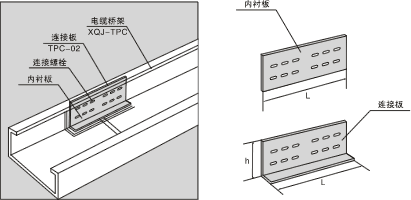

TPC-02A/B直接片与梯级式、托盘式、槽式桥架配套和电缆桥架的连接。
Connector Model TCP-02A/B is for connecting trays of ladder type，tray type and channel type. |
|
|
| |
|
