| 000护罩与连接件 |
|
 调宽片 XQJ-TPC-01A |
|
|
|
序 号
NO. |
型 号 Model |
配套高度
H
Height |
H1 |
规格L
|
备注
Remarks |
| 1 |
TPC-01A-6-1 |
60 |
50 |
100 |
高度h为60、100时，
每端6只连接孔
6 holes ineither end of such cable tray with a height 60mm and 100mm |
| 2 |
TPC-01A-6-1 |
200 |
| 3 |
TPC-01A-6-1 |
300 |
| 4 |
TPC-01A-6-4 |
400 |
| 5 |
TPC-01A-10-1 |
100 |
90 |
100 |
| 6 |
TPC-01A-15-2 |
200 |
| 7 |
TPC-01A-6-3 |
300 |
高度h为150时，
每端12只连接孔
12 holes ineither end of such cable tray with a height 60mm and 150mm |
| 8 |
TPC-01A-10-4 |
400 |
| 9 |
TPC-01A-15-1 |
150 |
140 |
100 |
| 10 |
TPC-01A-6-2 |
200 |
| 11 |
TPC-01A-10-3 |
300 |
| 12 |
TPC-01A-15-4 |
400 |

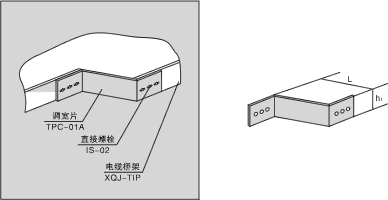

调宽片（TPC-01A）直接螺栓（IS-02）电缆桥架（XQJ-TIP）TPC-01A调宽片与梯级式、托盘式桥架配套作调宽使用。
Width mogulator Modle TPC-01A is for adjusting the width of cable trays，ladder ortray type. |
|
|
| |
|
