| 000槽式电缆桥架: |
|

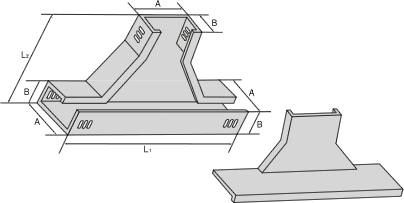

 下边垂直等径三通 XQJ-C-3E |
|
|
|
序 号
NO. |
型 号
Model |
规格L(Specification) |
重量：kg/节
Weight:kg |
备注
Remarks |
| A X B |
L1 |
L2 |
| 1 |
C-3E-1 |
50 X 25 |
450 |
225 |
1.52 |
|
| 2 |
C-3E-2 |
100 X 50 |
500 |
250 |
4.72 |
| 3 |
C-3E-3 |
150 X 75 |
550 |
275 |
6.65 |
| 4 |
C-3E-4 |
200 X 100 |
680 |
340 |
13.92 |
| 5 |
C-3E-5 |
250 X 125 |
730 |
365 |
17.71 |
| 6 |
C-3E-6 |
300 X 150 |
780 |
390 |
28.28 |
| 7 |
C-3E-7 |
400 X 200 |
880 |
440 |
61.33 |
| 8 |
C-3E-8 |
500 X 200 |
980 |
440 |
65.21 |
| 9 |
C-3E-9 |
600 X 200 |
1080 |
440 |
76.41 |
| 10 |
C-3E-10 |
800 X 200 |
1280 |
440 |
100.87 |
|
|
| |
|
