| 000槽式电缆桥架: |
|

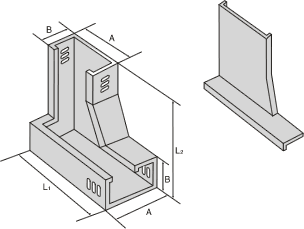

 垂直等径左下弯通 XQJ-C-2D |
|
|
|
序 号
NO. |
型 号
Model |
规格L(Specification) |
重量：kg/节
Weight:kg |
备注
Remarks |
| A X B |
L1 |
L2 |
| 1 |
C-2D-1 |
50 X 25 |
300 |
250 |
1.11 |
|
| 2 |
C-2D-2 |
100 X 50 |
300 |
250 |
3.80 |
| 3 |
C-2D-3 |
150 X 75 |
350 |
275 |
5.40 |
| 4 |
C-2D-4 |
200 X 100 |
440 |
340 |
11.08 |
| 5 |
C-2D-5 |
250 X 125 |
490 |
365 |
14.99 |
| 6 |
C-2D-6 |
300 X 150 |
540 |
390 |
23.82 |
| 7 |
C-2D-7 |
400 X 200 |
640 |
440 |
46.37 |
| 8 |
C-2D-8 |
500 X 200 |
740 |
440 |
56.64 |
| 9 |
C-2D-9 |
600 X 200 |
840 |
440 |
69.58 |
| 10 |
C-2D-10 |
800 X 200 |
1040 |
440 |
94.69 |
|
|
| |
|
