 6. 绘制吊配管简图 (Diagram Drawing of Pipe)
内容应包括：
(1). 支吊点的编号和几何、力学参数：管径、管中心（管底）坐标，生根处的形式和坐标，支吊处的荷载、温度、绝热层厚度等。
(2). 支吊配置图和吊配用材料明细表。
(3). 工程名称、管线名称、代号、吊配管设计单位的信息等。
(1). The number of the bearing point and the geometric and mechanic parameters,pipe diameters,pipe coordinate,inserting form and coordinate,load at the bearing point,temperature and the thickness of the insulation layer should be consider.
(2). Detailed list of materials
(3). Include project name,pipeline name,code name,the materials of the design group. |
|

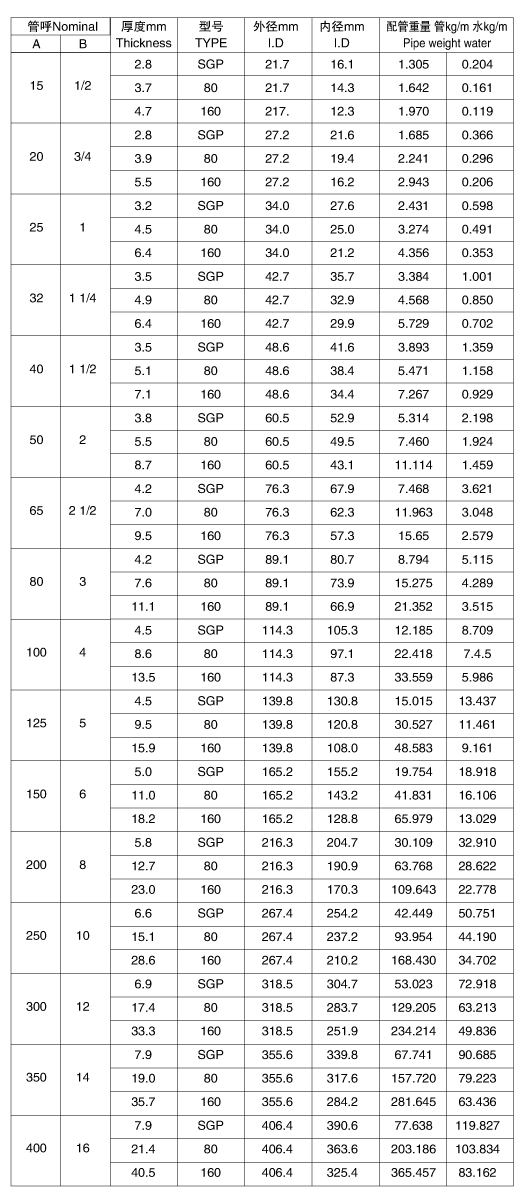

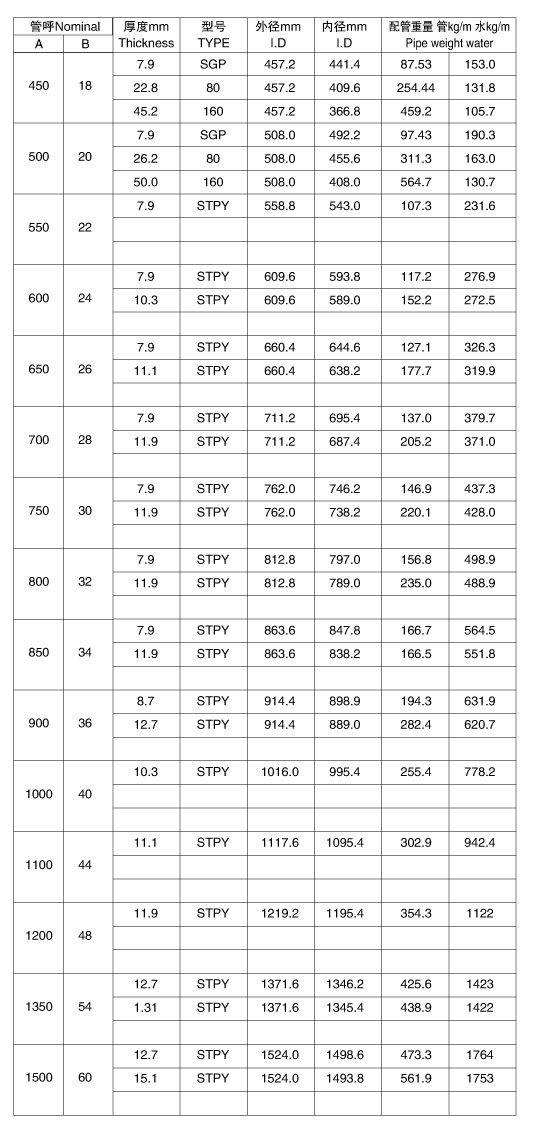

配管重量表 (PIPE WEIGHT TABLE): |
|
|
|
|
|
