 2.管道支吊的常用形式 (Conventional Type of the Pipe Supporting and Hanging)

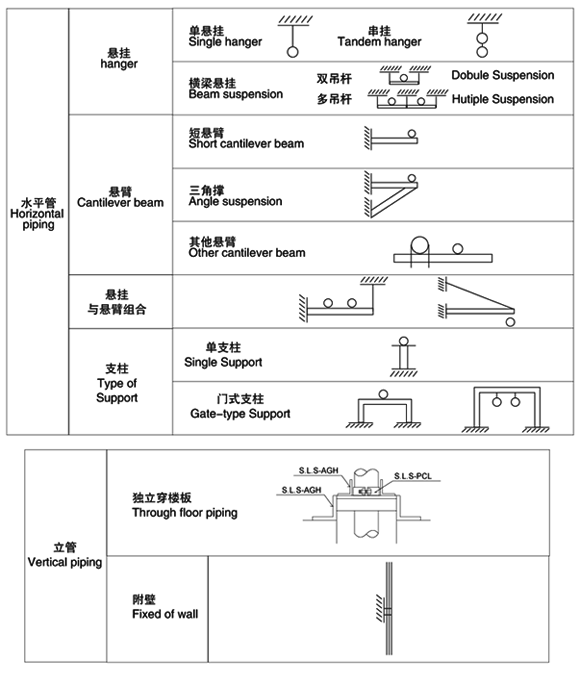

2.1 管道一般在水平段和立管段设置支承点，对小口径管道不在弯头处设支承，管道支承方式列于下图“
2.1 The bearing point should be at the horizontal pipe and vertical pipe,no need set bearing point at the elbow of the pipe with small size ,the styles of bearing pipe are listed below:
|
|
|
2.2 管道需要绝热保温时，应选用速丽保保温隔热支承隔断支承处的热传导，按温度和荷载选择速丽保的厚度和宽度。
If heat insulation to the pipe is needed,sleeper insulation bearing should be used to insulate the heat transmission.The thickness and width of sleeper should be selected in accord with the temperature and load.
2.3 管道需要减震防震时，应选用防震吊挂或支座，支承的荷载应与防震用弹簧或橡胶的支承能力和刚度相匹配。
If the pipe needs shock absorption or shockproof, shockproof hanger or support should be selected.The load should be equal to the loading capacity and rigidity of the shockproof spring hanger or rubber hanger.
|
|
|
|
