| 00多功能吊挂系统: |
|

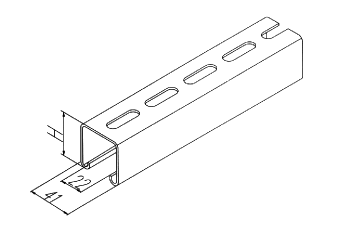

 吊配管部件--SLS有孔型钢 (SLS CHANNEL WITH HOLES) |
|
|
|
|
| |
1. 材质：碳钢 (Material Carbon Steel)
2. 定尺长：3m (Specified Length 3m)
3. 许用弯曲应力：140MPa (Recommended bending stress:140Mpa.For Carbon Steel)
4. 允许最大挠度：1/240 (Recommended max.deflection: 1/240) |
|
|

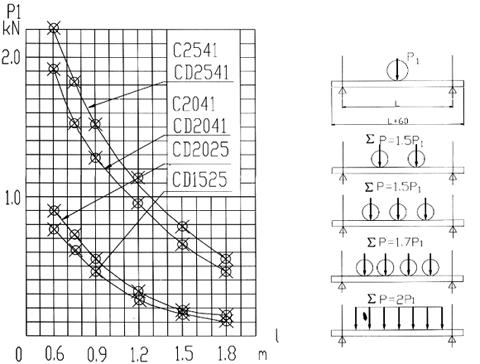

简支状况下最大许用集中荷载
Max.allowable load for simple beam,concentrated load at center. |
 |
|
| |
|
