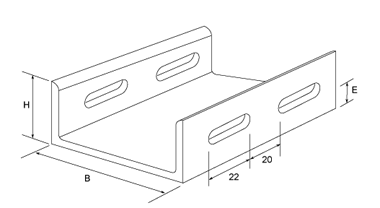

1.E08: 单边孔 (E08：Channel with one side holes.)
E08-1: 双边孔
(E08-1: Channel with double sides holes.)
2.材质：碳钢 (Material:Carbon Steel.)
3.定尺长：2990mm (Specified Length 2990mm.)
4.许用弯曲应力：140MPa (Recommended Bending Stress 140 Mpa.)
5.允许最大挠度：1/240 (Recommended Max.Deflection:1/240.)

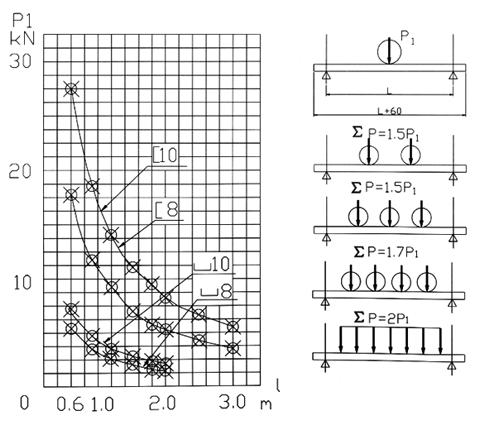

简支状况下最大许用集中荷载 Max.allowable load for simple beam,concentrated load at center. |
